High Quality 5 Pair /10 Core CCA Shielded Telephone Cable

Overview

Basic Info.

Model NO.	dx-tc-01
Model	Dx-Al-01
Brand	Dx
Transport Package	Coil
Specification	100m
Trademark	dx
Origin	Jiaxing
HS Code	85444911
Production Capacity	500000m/Year

Product Description

Product Description

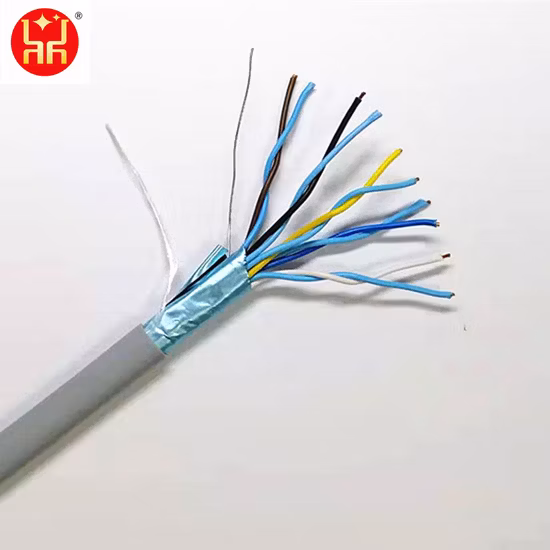

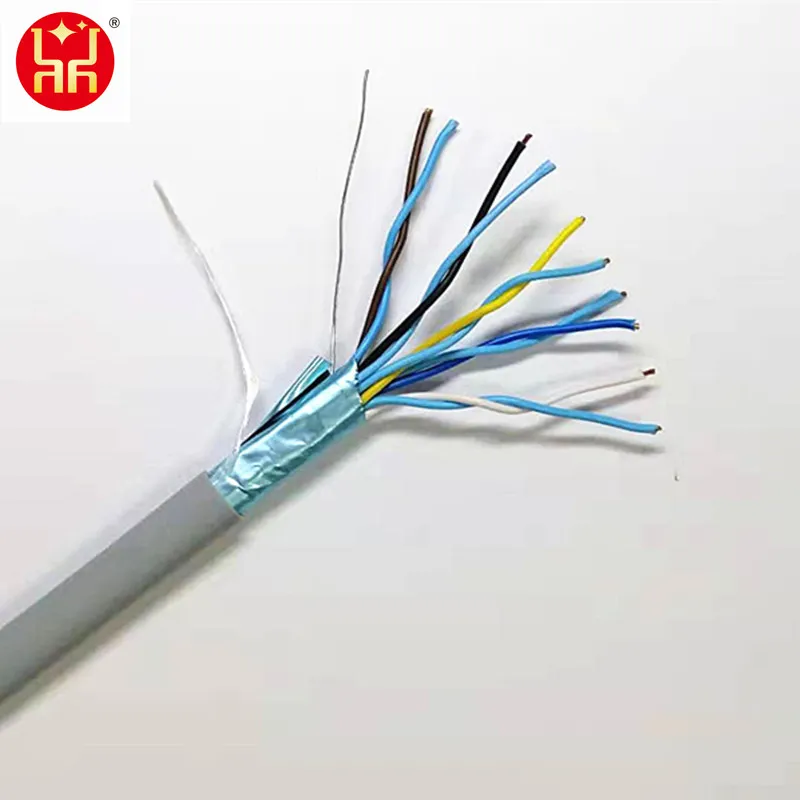

5 Pair Telephone cable

5X2X1/0.79mm cca ID:1.19mm PE

1/0.42mm TCCA drain wire+PE +AL

OD:7.7mm ±0.2mm PVC

Detailed Photos Product Parameters

Product Structure

	Telephone Cable
Conductor Dimension	0.37mm/0.40mm/0.50mm, 24AWG
Conductor Material	OFC/CCC/CCA/CCS
Insulation	1. Water blocking swellable tape (optional)
	2. HD-PE (High density polyethylene)
	3. 1.0mmHD-PE(Highdensity polyethylene)
Number Of Cores	2core/4core/6core/8core/10core
Shielding	UTP/Polyester Tape/Al Foil
Ripcord yes/no	Yes with Nylon
Jacket	PVC (Polyvinyl-Chloride)/ LSZH (Low Smoke Zero Halogen)/PE
Separator	Mylar Spirally Wrapped
Color	Different color is available
Operating temperature	-20 ° C - +75 ° C
Service Life	20~25 years

Specification

Model	specification	insulation outer(mm)	Overall outer(mm)
DX-Tel-01	1x2x1/0.40	0.9	2.7
DX-Tel-02	2x2x1/0.40	0.9	4.0
DX-Tel-03	3x2x1/0.40	0.9	4.3
DX-Tel-04	4x2x1/0.40	0.9	4.8
DX-Tel-05	6x2x1/0.40	0.9	5.7
DX-Tel-06	8x2x1/0.40	0.9	6.3
DX-Tel-07	10x2x1/0.40	0.9	8.0
DX-Tel-08	20x2x1/0.40	0.9	10.0
DX-Tel-09	25x2x1/0.40	0.9	11.5
DX-Tel-10	30x2x1/0.40	0.9	12.6
DX-Tel-11	50x2x1/0.40	0.9	16.0

Packaging & Shipping

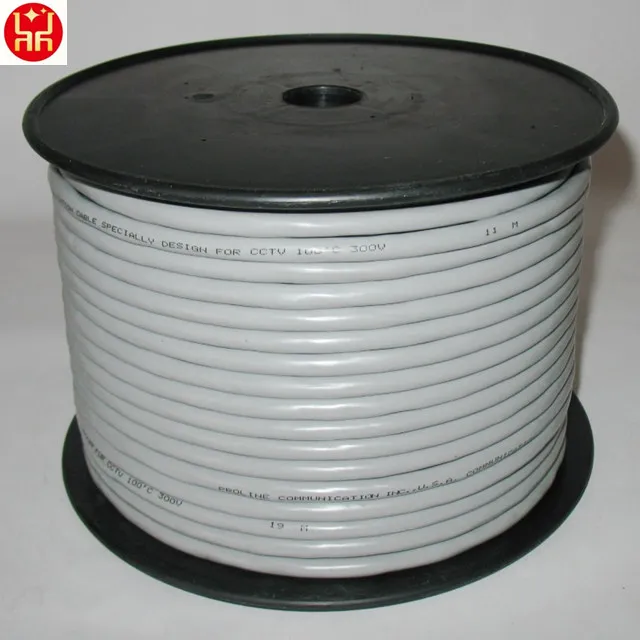

Packing length : 40m/roll ,60m/roll ,91.4m/roll 100m/roll , 200m/roll , 300m/roll ; 305m/roll
Inner packing : plastic cover / wooden drum / paper drum ;
Outer packing : 2/4/ 6 roll / carton box ;
Other packing according to customers' request

Company ProfileJiaxing Dingxin Electronic has specialized in manufacturing cable and its parts since 2012.Our products mainly including audio and video cable, speaker cable, microphone cable, telephone cable, electric wire ,monitor cable, alarm cable, fire alarm cable and related parts& accessories etc. All cables export only . We have many years of production experience and are familiar with the needs of all regions of the worldOur cable products are exported to all parts of the world by taking advantage of our hard-won reputation, honesty, reliability and quality, Dingxin's goal is to ensure product quality and better serve customersAt the same time, we are looking for global partners overseas. If your company is the end user, distributor or agent of cables, please contact us.We look forward to working with you in the near future.
